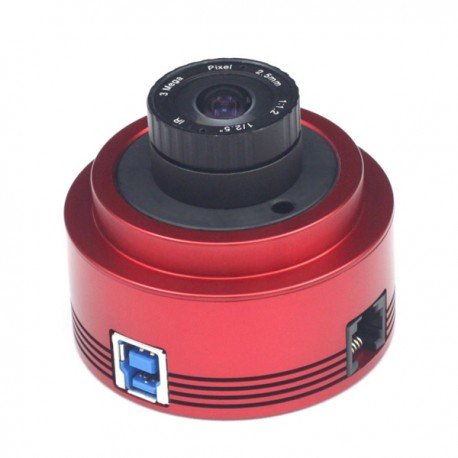

ASI ZWO 178 MC Colore Astrokamera

ASI ZWO 178 MC Colore

ASI ZWO 178 MC Colore Astrokamera, je ena bolj priljubljenih kamer, ki uporablja Sony senzor IMX178.

Optimalni QE do 80 %.

ASI ZWO 178 MC Colore Astrokamera, je opremljen z vrati USB 3.0 za hiter prenos podatkov, s čimer se izognete izgubi okvirjev.

Več informacij na uradni strani proizvajalca, ki se nahaja tukaj.

Tehnične specifikacije:

• Sensor: 1/1.8” CMOS IMX178
• Resolution: 6.4 Mega Pixels 3096*2080
• Pixel Size: 2.4µm
• Sensor Size: 7.4mm*5mm
• Diagonal: 8.92mm
• Exposure Range: 32µs-1000s
• ROI: Supported
• ST4 Guider Port: Yes
• Focus Distance to Sensor: 12.5mm
• Shutter Type: Rolling Shutter
• Protect window: IR-CUT window
• Operating System Compatibility: Mac, Windows, Linux
• Interface: USB3.0/USB2.0
• Bit rate: 14bit output(14bit ADC)
• Adaptor: 2″ / 1.25″ / M42X0.75
• Dimension: φ62mm X 36mm
• Weight: 120g or 4.2 ounces (without lens)
• Working Temperature: -5°C—45°C
• Storage Temperature: -20°C—60°C
• Working Relative Humidity: 20%—80%
• Storage Relative Humidity: 20%—95%

Supported resolution
10bit ADC/14bit ADC

• 3096×2080 60fps / 30fps
• 2560×2048 62fps / 31fps
• 2048×1080 116fps / 58fps
• 1280×960 130fps / 65fps
• 800×600 204.7fps / 102.3fps
• 640×480 253.1fps / 126.5fps
• 320×240 479.7fps / 239.8fps

USB2.0

• 3096×2080 6fps
• 2560×2048 8fps
• 2048×1080 19fps
• 1280×960 34fps
• 800×600 89.5fps
• 640×480 139.9fps
• 320×240 479.7fps
